Sending Push Notifications

You can send push notifications to the Cozie app using a web API as shown in the Python code example below.

Please note that you will have to specify your ID_PARTICIPANT, ID_EXPERIMENT, ID_PASSWORD and API_KEY. You can request an API_KEY by emailing us a request at cozie.app@gmail.com.

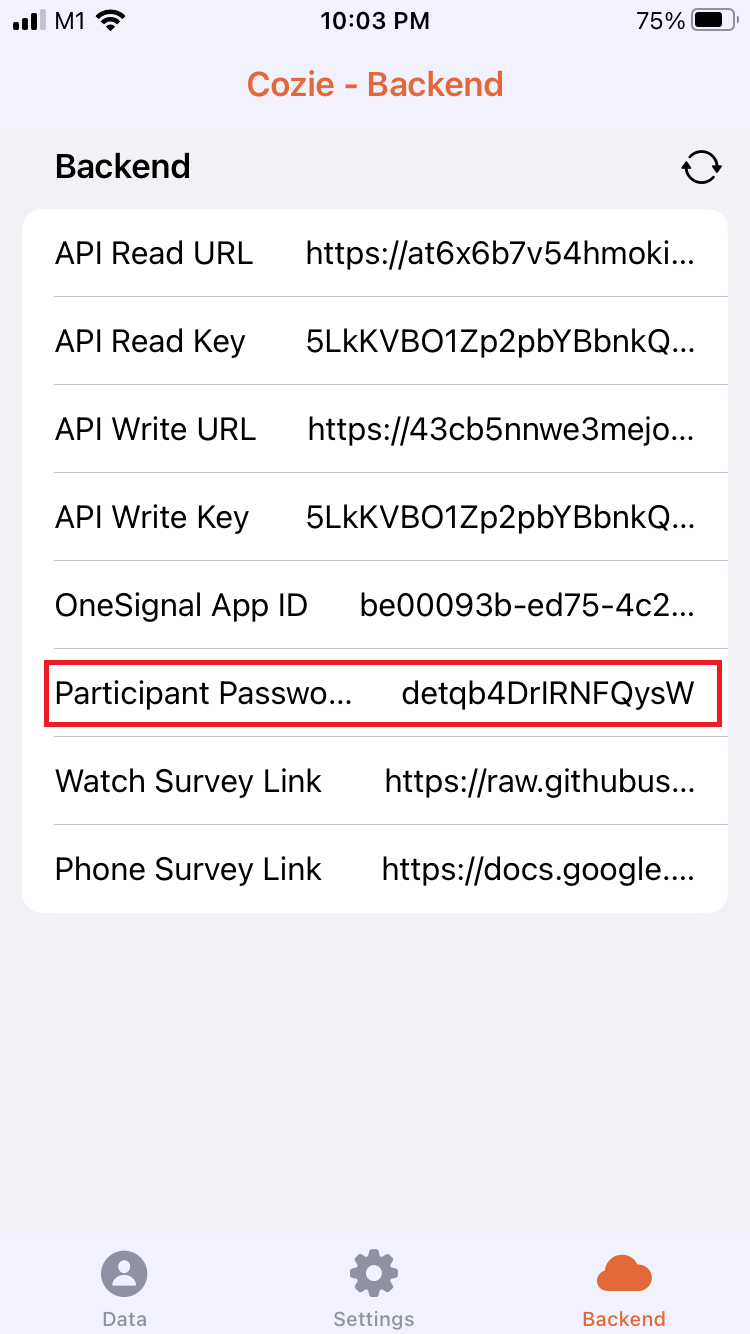

ID_PARTICIPANT and ID_EXPERIMENT can be found in the 'Settings' tab of the Cozie iPhone app. ID_PASSWORD can be found in the 'Backend' tab of the Cozie iPhone app.



# Credentials
ID_PARTICIPANT = 'ExternalUser'
ID_EXPERIMENT = 'AppleStore'
ID_PASSWORD = 'XXX'
API_KEY = 'XXX'
API_URL = 'https://69xmiejax4.execute-api.ap-southeast-1.amazonaws.com/prod/notification/'

# Define payload
payload= dict()
payload['id_experiment'] = ID_EXPERIMENT
payload['id_participant'] = ID_PARTICIPANT
payload['id_password'] = ID_PASSWORD
payload['message'] = 'test_message'
payload['heading'] = 'test_heading'
payload['subtitle'] = 'test_subtitle'

headers = {'x-api-key': API_KEY,
          'Content-Type': 'application/json'}

req = requests.post(API_URL, headers=headers, json=payload)

print(req.status_code)
print(req.content)

The value in the text fields is shown on the action buttons in push notification. The value of the id fields is logged with the other Cozie data under the column name action_button.

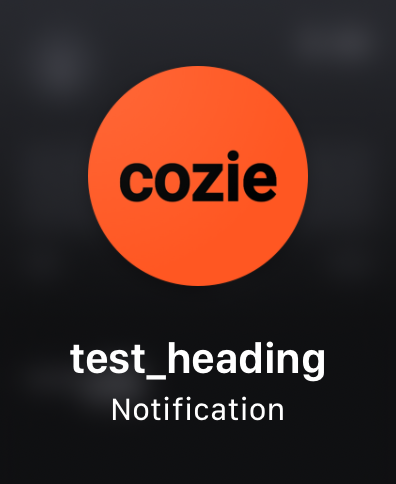

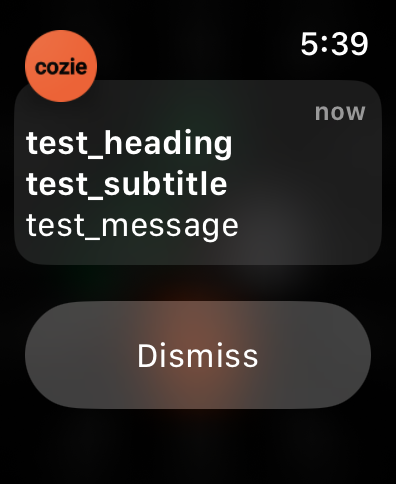

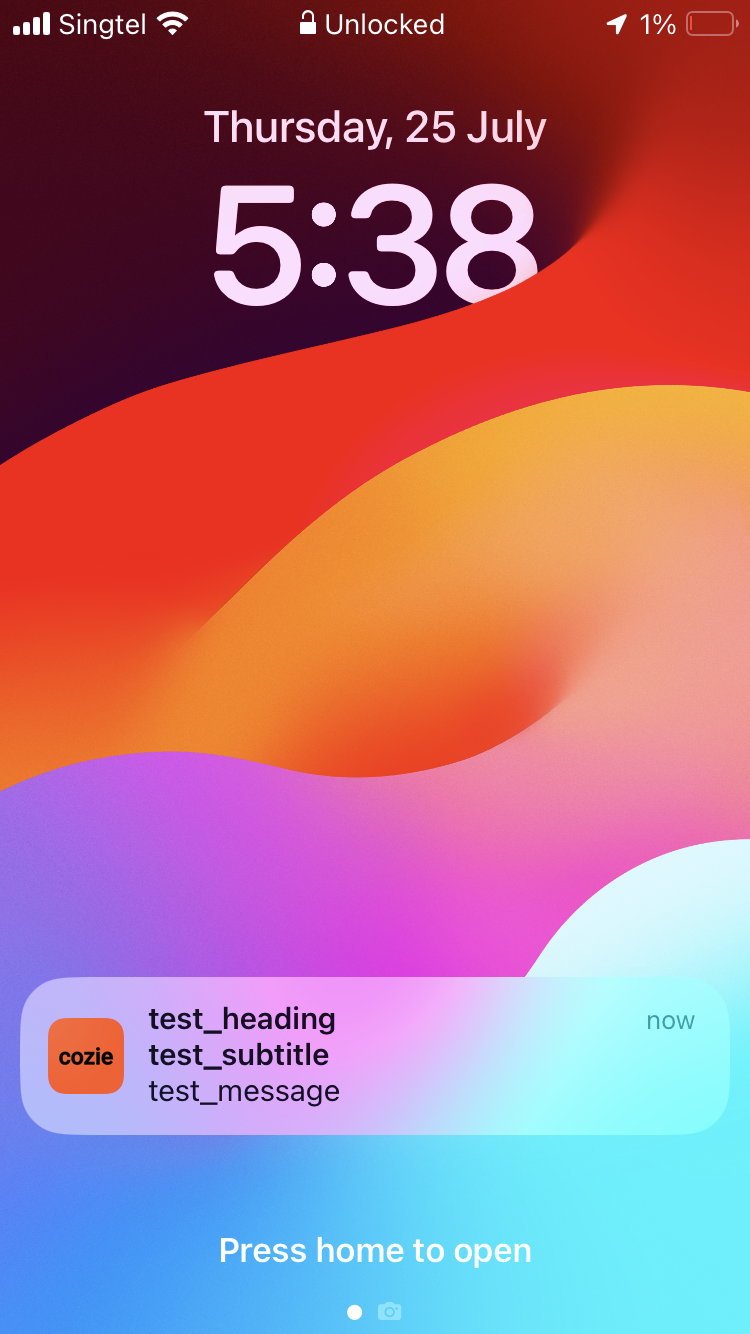

Push notifications are shown on the iPhone and/or Apple Watch depending on which device is used. The screenshots below show how the push notifications look on the iPhone and Apple Watch.



Push notifications with action buttons

Buttons in the push notifications below the push notification message are called 'action buttons'. These can be shown by adding the buttons field to the payload dictionary as shown below.

ID_PARTICIPANT = 'ExternalUser'
ID_EXPERIMENT = 'AppleStore'
ID_PASSWORD = 'XXX'
API_KEY = 'XXX'
API_URL = 'https://69xmiejax4.execute-api.ap-southeast-1.amazonaws.com/prod/notification/'

# Define payload
payload= dict()
payload['id_experiment'] = ID_EXPERIMENT
payload['id_participant'] = ID_PARTICIPANT
payload['id_password'] = ID_PASSWORD
payload['message'] = 'test_message'
payload['heading'] = 'test_heading'
payload['subtitle'] = 'test_subtitle'
payload['buttons'] =[{'id': 'helpful',
                      'text': 'Helpful'},
                     {'id': 'not_helpful',
                      'text': 'Not helpful'}
                     ]

headers = {'x-api-key': API_KEY,
          'Content-Type': 'application/json'}

req = requests.post(API_URL, headers=headers, json=payload)

print(req.status_code)
print(req.content)

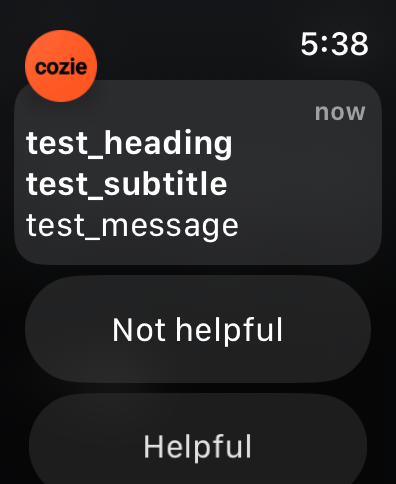

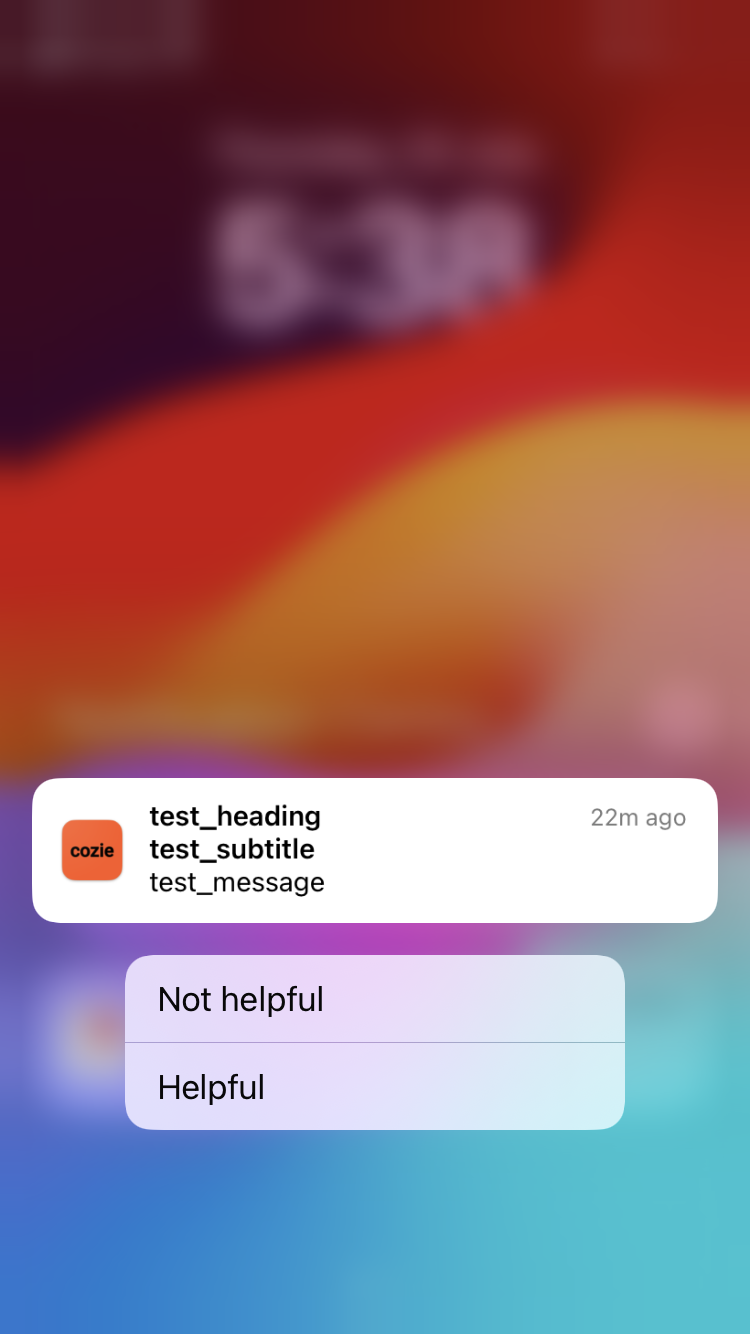

The screenshots below show how the push notifications with action buttons look on the iPhone and Apple Watch. The action buttons on the iPhone only show after the participant long-taps the push notification.
